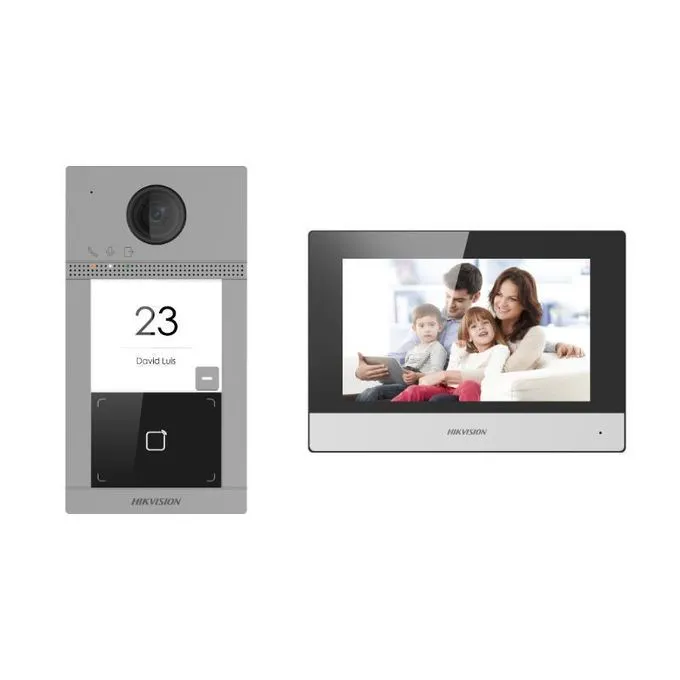

Hikvision IP VIDEO INTERCOM KIT DS-KIS608-P

oor station/System parameters

• Operation system: Embedded Linux operation system
• Flash

32 M

• RAM

256 M

Door station/Video parameters

• Supplement light: IR supplement
• Resolution

Main stream : 1920 × 1080

Sub stream : 640 × 480

• Lens1
• WDRSupport
• FOVHorizontal: 124° Vertical: 75°
• Video compression standardH.264

Door station/Audio parameters

• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker (more than 80 dB within 30 cm)
• Volume adjustmentAdjustable
• Audio compression standardG.711 U, G.711 A
• Audio compression Rate64 Kbps
• Audio intercom

Two-way audio communication

• Audio qualityNoise suppression and echo cancellation

Door station/Capacity parameters

• User capacity2000

Door station/Network parameters

• Network protocolTCP/IP, RTSP
• Wi-FiWi-Fi 802.11 b/g/n
• Wired network10/100 Mbps self-adaptive Ethernet
• 3G/4G/
• Bluetooth/

Door station/Device interfaces

• Network interface1
• RS-4852
• Wiegand0
• Lock control2
• Exit button2 Max.
• Door contact2
• Alarm input4
• Alarm output0
• Power interface1
• TAMPER1
• USB interface0
• TF card1 (reserved)

Door station/General

• Button1
• Indicator3
• Power consumption

＜ 10 W

Power supply

Standard PoE/12 VDC;IEEE802.3af, standard PoE

12 VDC

• Working temperature: -40° C to 53° C(-40° F to 127.4° F)
• Working humidity: 10% to 95%
• Dimension: 174 mm × 91 mm × 29 mm
• Installation: Surface mounting
• Application environmentOutdoor
• Protection level

IP65, IK08

• Weight380 g

Indoor station/System parameters

• Operation systemEmbedded Linux operation system
• Memory128 MB
• Flash32 MB

Indoor station/Display parameters

• Display screen7-inch colorful TFT screen
• Display resolution1024 × 600
• Operation methodCapacitive touch screen

Indoor station/Audio parameters

• Audio input: Built-in omnidirectional microphone
• Audio output: Built-in loudspeaker
• Audio quality

Noise suppression and echo cancellation

• Audio compression standard

G.711 U

• Audio compression Rate

64 Kbps

Indoor station/Network parameters

• Network interface1 RJ-45 10/100 Mbps self-adaptive
• Wired network

10/100 Mbps self-adaptive

• Wireless network

Wi-Fi 802.11 b/g/n

• Protocol

TCP/IP, SIP, RTSP

Indoor station/Device interfaces

• RS-4851
• Alarm input8-ch alarm inputs
• Relay output2
• TF cardMax to 32 G, SD 2.0 or lower version
• Indoor station/General
• Power consumption

≤ 6 W

• Power supplyStandard PoE,12VDC
• Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

• Working humidity10% to 90%
• Dimension (L x W x H)

200 mm × 140 mm × 15.1 mm (7.9″ ×

5.5 × 0.6\”)”
